      How do I connect a Raspberry Pi

      In this article we will try to explain how you can connect the raspberry pi the correct way.

      Step 1:


      Open up the box that contains the Raspberry Pi

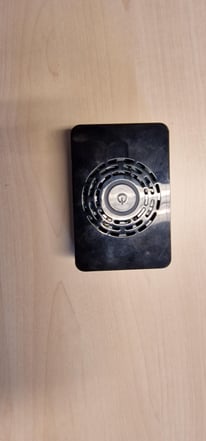

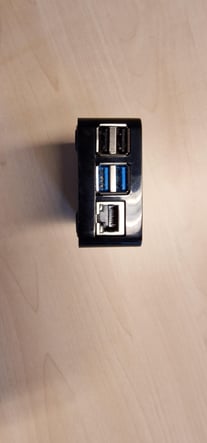

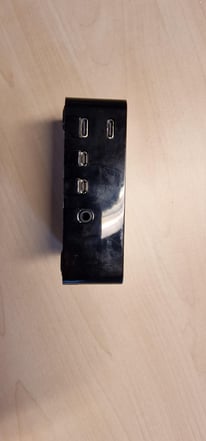

      20231018_120641     20231018_120633   20231018_120646

      Step 2:

      Take the powersupply and the UTP cable (Internet) out of the box.



      Step 3:

      Connect the Powersupply and UTP cable to the Raspberry Pi

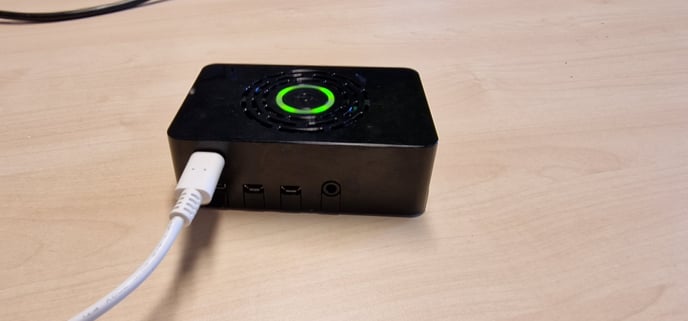

      20231018_120725

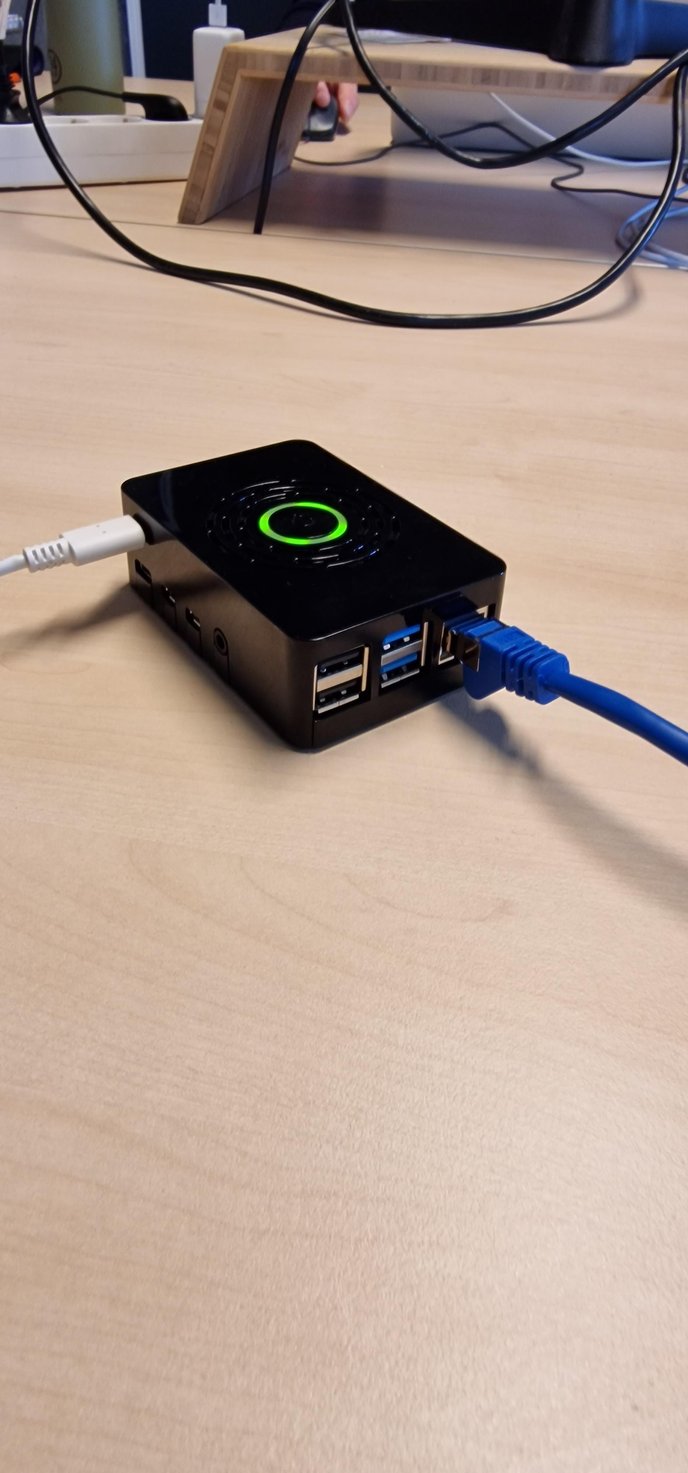

      20231018_120816

      Step 4:

      Connect the UTP Cable to the right Switch / Router

      Make sure you are connecting the cable to the same network environment as that the POS or Server is connected to! (see drawing)

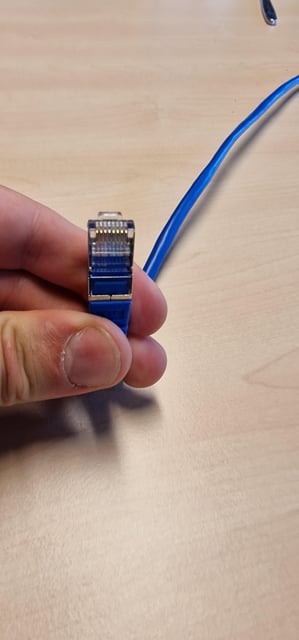

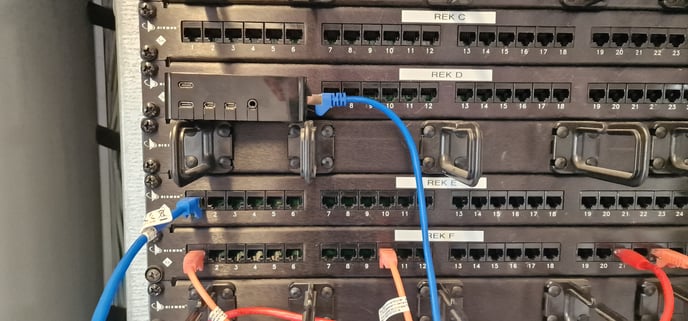

      20231018_12080120231018_120924

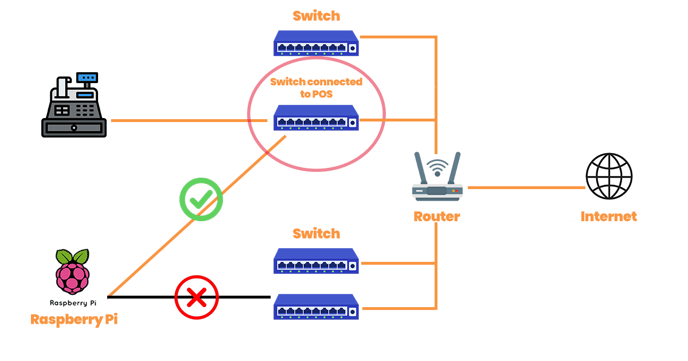

      Network drawing

      Make sure you are connecting the cable to the same network environment as that the POS or Server is connected to! (see drawing)

      Step 5:

      Contact Jamezz

      Jamezz has to do the setup on our end after that we will be able to use the raspberry pi.
